ES134D Recessed LED Down Light

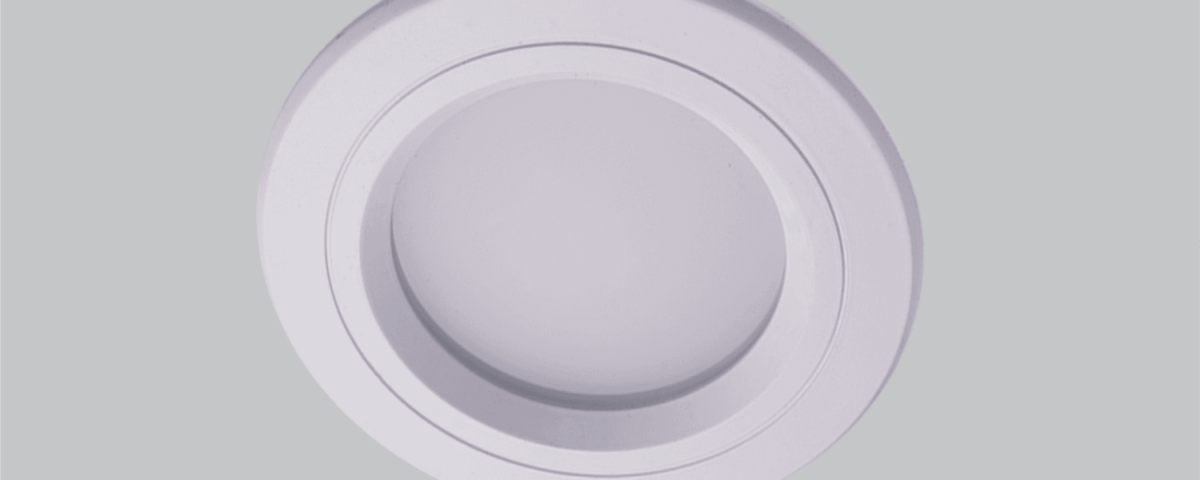

December 4, 2024Ex100D – Recessed LED Down Light
Highest Quality Cree COB LED for Better Performance Body made of High Quality Powder coated Extruded Aluminum. Efficient Eco Solve Driver with line filters , Surge protector for lamp safety. Eco Solve Drivers come with power factor correction to achieve maximum power saving. Lamp designed with adequate heat sink capacity for longer life. High quality reflector for maximum lumen output.
Product Application:
Residences/ Showrooms/ Hotels
Electrical & Physical Parameters
| Input Voltage | 85V-285V AC |
| Light Source | Osram LED |
| Power Consumption | 36W/ 50W |
| Power Factor | >0.94 |
| THD | <18% |
| Fitting Specification | Powder Coated Aluminum |
| IP Rating | IP60 |
| Type of Diffuser | Milk-White/ Pin Head |
Optical Parameters
| CRI | > 71 |
| CCT | ● 2700K ● 3000K ● 4000K ◯ 6500K |
| Luminous Efficacy | > 114 lm/W |
